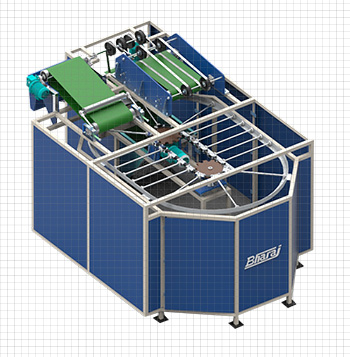

Batch Cooling Machine – 30 BPM to 200 BPM
Post-Fill Cooling | Bottle Stabilization | Continuous Process
Product Overview
The Batch Cooling Machine is designed to rapidly bring down the temperature of hot-filled or shrink-wrapped bottles to ambient levels. This ensures product safety, prevents label damage, and enhances storage stability. Ideal for water, juice, and beverage bottling units.
Technical Specifications
| Specification | Details |
|---|---|
| Output Capacity | 30 to 200 Bottles Per Minute (BPM) |
| Cooling Type | Spray Cooling / Water Immersion / Air Cooling (Customizable) |
| Applicable Bottle Size | 200 ml to 2 Litres |
| Cooling Temperature Range | From 80–90°C down to ambient (~25–30°C) |
| Material | Stainless Steel 304 / 316 Structure & Tray |
| Conveyor Type | Modular Chain / Slat Conveyor |
| Cooling Medium | Chilled Water / Ambient Water / Air Fans |
| Drainage & Overflow | Built-in Drain Pipe and Overflow System |
| Power Supply | 3 Phase, 440V, 50Hz |
Available Models
| Model | Speed | Cooling Method |
|---|---|---|
| NTS-BC30 | 30 BPM | Spray Cooling – Small Scale |
| NTS-BC60 | 60 BPM | Water Bath with Conveyor |
| NTS-BC100 | 100 BPM | Spray Nozzle + Air Blower |
| NTS-BC150 | 150 BPM | High-Volume Chilled Water Spray |
| NTS-BC200 | 200 BPM | Multi-Zone Cooling Tunnel |
Applications
| Hot-Filled Juice Bottles | Shrink-Wrapped Packaged Water | Carbonated Beverages | Dairy-Based Drinks | Energy Drinks | Pharma Liquid Packs |
Key Features
- Prevents condensation damage post hot-fill or shrink wrapping
- Ensures bottle strength and label adhesion
- Flexible design to accommodate different bottle shapes/sizes
- Modular conveyor with adjustable speed control
- Low water consumption with recycle option
- Corrosion-resistant structure for long-term usage
Compliance & Standards
| FSSAI & GMP | Designed for food-grade operations with hygienic surfaces |
| ISI/BIS Bottle Handling | Supports quality retention in certified bottling lines |
| CE Certified Models (Optional) | Available for international installation requirements |
