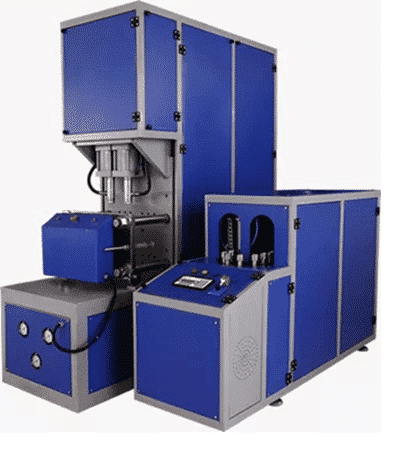

PET Blowing Machine – 1200 BPH to 10,900 BPH
Precision Bottle Forming | High-Speed Automation | Industrial Performance
Product Overview
NTS Engineering supplies a wide range of semi-automatic and fully automatic PET Blowing Machines ideal for manufacturing PET bottles of varying shapes and capacities. Designed for speed, energy efficiency, and consistent quality, these machines are widely used in water, beverage, edible oil, and pharma industries.
Technical Specifications
| Specification | Details |
|---|---|
| Output Capacity | 1200 to 10,900 Bottles Per Hour (BPH) |
| Bottle Volume Range | 100 ml to 20 Litres |
| Machine Type | Semi-Automatic / Fully Automatic |
| Number of Cavities | 1 to 8 Cavity Options |
| Heater Type | Infrared Rotary / Linear Heating System |
| Material Used | PET Preforms (Standard Neck Sizes: 28mm, 30mm, 46mm, etc.) |
| Blowing Pressure | 25–40 Bar (Based on Bottle Volume) |
| Mold Clamping | Hydraulic / Pneumatic (Model Dependent) |
| Power Requirement | 3 Phase, 440V, 50Hz |
Available Models
| Model | Capacity | Cavities | Operation |
|---|---|---|---|
| NTS-PET1200 | 1200 BPH | 1 Cavity | Semi-Automatic |
| NTS-PET2400 | 2400 BPH | 2 Cavity | Semi-Automatic |
| NTS-PET4800 | 4800 BPH | 4 Cavity | Fully Automatic |
| NTS-PET7200 | 7200 BPH | 6 Cavity | Fully Automatic |
| NTS-PET10900 | 10,900 BPH | 8 Cavity | Fully Automatic |
Applications
| Packaged Drinking Water | Carbonated Beverages (Soft Drinks) | Edible Oil Bottling | Pharmaceutical Bottles | Household Chemicals | Agrochemicals & Pesticides |
Key Features
- Energy-efficient preform heating system
- Low maintenance, high durability components
- Precise neck, body & base forming with minimal rejection
- Servo-controlled motion (in fully automatic models)
- User-friendly PLC interface with touch screen (optional)
- Fast mold changeover & compact design for space saving
Certifications & Standards
| ISI / BIS Compatible Bottles | Meets Indian Standards for packaged drinking water and soft drinks |
| CE Certified Components | Optional – For export models or international installations |
| GMP & FSSAI Support | Suitable for food-grade bottle production in pharma & beverage sector |
