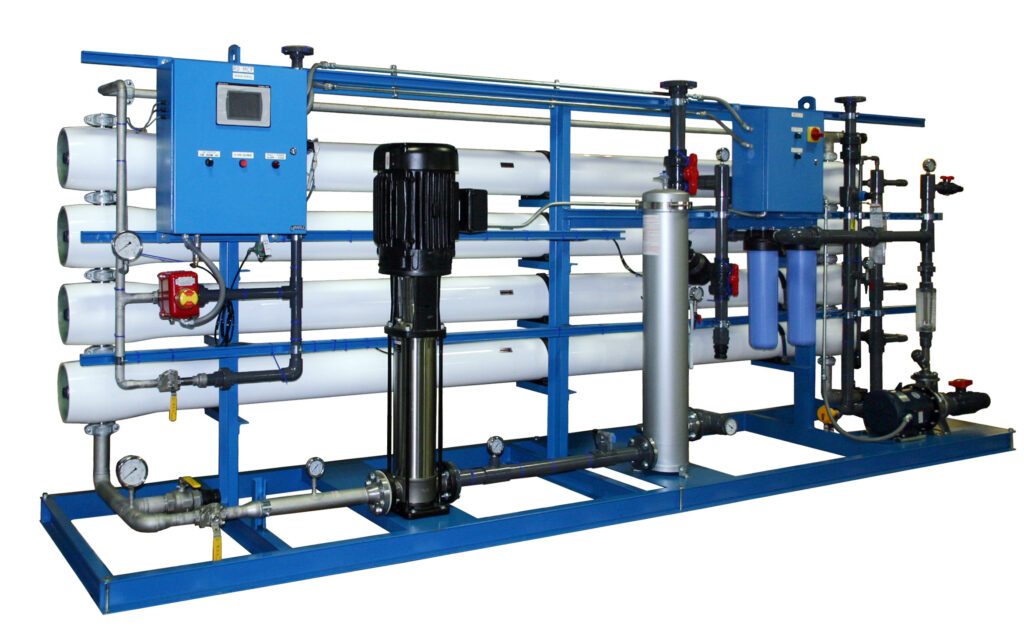

RO Plant – 500 LPH to 20,000 LPH
Advanced Reverse Osmosis Systems for Industrial, Commercial & Institutional Use
Product Overview
NTS Engineering offers a complete range of high-capacity Reverse Osmosis (RO) Plants designed for superior water purification performance. Our systems are engineered to deliver clean, safe, and compliant water for diverse industrial and commercial applications.
Technical Specifications
| Specification | Details |
|---|---|
| Capacity Range | 500 LPH to 20,000 LPH |
| Technology | Reverse Osmosis with Multi-Stage Filtration |
| Membrane Type | Thin Film Composite (TFC), Polyamide Spiral Wound |
| Recovery Rate | 50% to 75% depending on feed water TDS |
| Salt Rejection | Up to 98% |
| Pre-Treatment System | Sand Filter, Activated Carbon Filter, Micron Cartridge Filter |
| Post-Treatment Options | UV Sterilizer / Ozonation / pH Correction (optional) |
| Control Panel | Automatic / Semi-Automatic with Digital Flow Meter & TDS Monitor |
| Pumps | High Pressure Pump (SS 304/316) – Grundfos / CNP / Equivalent |
| Structure | MS Powder Coated / SS Skid |
| Power Supply | 3 Phase, 440V, 50Hz (Customizable) |
Available Models
| Model | Capacity | Recommended Use |
|---|---|---|
| NTS-RO500 | 500 LPH | Schools, Small Industries, Clinics |
| NTS-RO1000 | 1000 LPH | Hotels, Hospitals, Bottling Units |
| NTS-RO2000 | 2000 LPH | Mid-size Manufacturing Units |
| NTS-RO5000 | 5000 LPH | Food Industry, Pharma Plants |
| NTS-RO10000 | 10,000 LPH | Large Industries, Breweries |
| NTS-RO20000 | 20,000 LPH | Municipal Projects, Commercial Parks |
Applications
| Drinking Water Plants | Pharmaceutical Manufacturing | Food & Beverage Processing | Power Plants | Textile & Dye Industries | Automobile & Steel Plants |
Key Features
- High-efficiency RO membranes for maximum output
- Corrosion-resistant SS/FRP components
- Digital TDS & flow meters for real-time monitoring
- Energy-efficient and low-maintenance design
- Fully customizable as per client requirement
Quality & Compliance
| BIS / IS Standards Compliant | ISI-marked components and compliance-ready units |
| FSSAI Compatible | Meets packaged drinking water manufacturing norms |
| ISO 9001:2015 Certified | Manufacturing and quality management under ISO norms |
